Industrial Polyurethane Round Belt

Name: Industrial Polyurethane Round Belt
Brand: jiuna
Price: 1 USD

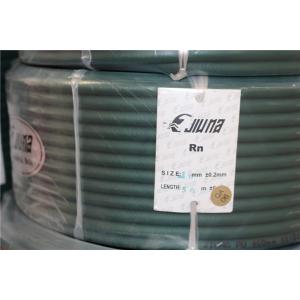

Quality Industrial Polyurethane Round Belt for sale

Brand Name : jiuna

Model Number : Diameter 5mm~15mm

Certification : ROHS

Place of Origin : China

MOQ : 10rolls

Payment Terms : T/T, 50% payment in advance ,50% balance before shipment ; Western Union ; L/C

Supply Ability : 96.000 meters per Month

Delivery Time : Within 5 working days After receipt of your deposit

Packaging Details : Inner packing is plastic film .outer packing is carton .

color : green or as your require

material : PU

longth : 300m/roll 200m/roll 100m/roll

hardness : 85A-90A

tensile rate : 0.3kg-31.3kg

stretching rate : 1.5%-3%

Contact Now

Green High Tensile And Tear Strength Resistance To Oils Fuels Polyurethane Round Belt For Industrial

PU Cord Belt Application :

(1) Newspaper conveying,
(2) Packing machines,
(3) Ceramic and stoneware processing plants,
(4) Floor and roof tiles conveying,
(5) Wood Working machineries,
(6) Textile machines,
(7) Paper industry machines,
(8) Food grading machines, other food processing machines.

Items No. φ	least radius of gyration		stretch rate	Maximum tensile rate		Hardness	length of rolled
DIA (mm)	In	mm	Stretching rate	Kg	Lbs	Hardness (A)	Roll (m)
2	0.79	20	1.5-3%	0.3	0.7	90	400
3	0.98	25	1.5-3%	0.7	1.6	90	400
4	1.38	35	1.5-3%	1.2	2.7	85	200
5	1.57	40	1.5-3%	2.0	4.3	85	100
6	1.97	50	1.5-3%	3.2	7.0	85	100
7	2.17	55	1.5-3%	4.1	9.0	85	100
8	2.56	65	1.5-3%	5.0	11.0	85	100
9	2.95	75	1.5-3%	6.8	15.0	85	50
10	2.95	75	1.5-3%	7.7	17.0	85	50
							30
15	4.72	120 mm	1.5-3%	17.7	39.0	85	30
18	5.71	145 mm	1.5-3%	25.4	56.0	85	30
20	6.30	160 mm	1.5-3%	31.3	69.0	85	30
